Controller

New controller version: Generation 3.0

  • Control via existing PC, software included
  • Possibility to combine with existing GPIB devices
  • Handheld service unit HSU3.0 included
  • Touch control unit TCU3.0 optional operating tablet

MATURO CONTROL APPLICATION mcAPP

  • Software always included

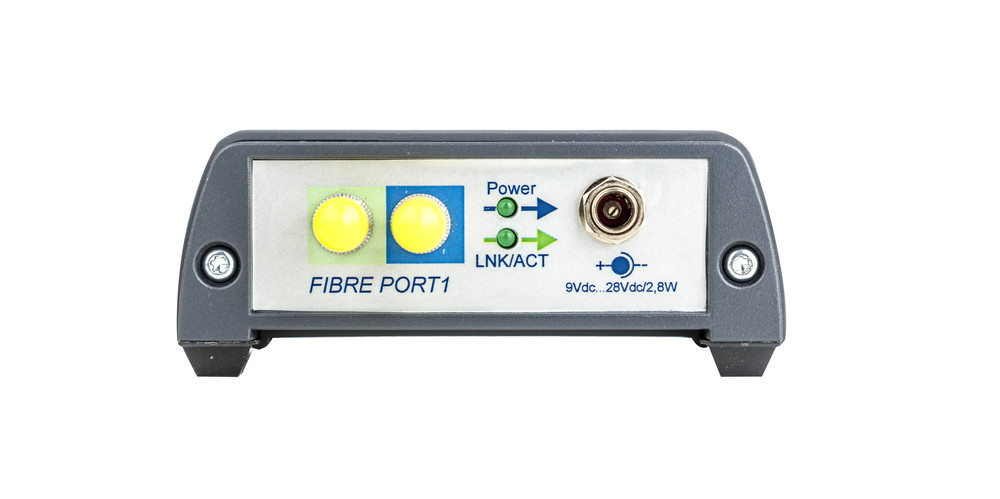

FIBRE CONTROL UNIT FCU3.0

For operation up to 4 devices with multiple axis of motion, infinitely expendable


Data interfaceTCP/IP
Device interfaceFibre optic cables (up to 2000 m distance)
Transfer rateReal time (100 Mbit/s)

datasheet FCU

FCU3.0 - S

For the operation of one device


Data interfaceTCP/IP
Device interfaceFibre optic cables (up to 2000m distance)
Transfer rateReal time (100 Mbit/s)

datasheet FCU-S

NCD

For the operation of up to 8 devices with multiple axis of motion.
With touch panel, function keys, various interfaces and much more!


Data interfaceIEEE 488.2 Bus or others
Device interfaceFibre optic cable (up to 2000 m distance)
Tranfer RateReal time 100 Mbit/s

NCDManual NCD

MCU and SCU production will be terminated due to discontinued components. Last order up to 03/31/2019. Spare parts are guaranted up to 2029.

SCU

For the operation of one device with one axis of motion. E.g. Turntables, Antenna Stands, Cable Guide Rails.


Data interfaceIEEE 488.2 Bus (GPIB)
Device interfaceCAN-Bus via fibre optic cable
Tranfer Rate100 Baud

SCUManual SCU

MCU

For the operation of up to four devices with multiple axis of motion
E.g. Combinations of Turntables, Antenna Masts, etc.



Data interfaceIEEE 488.2 Bus (GPIB)
Device interfaceCAN-Bus via fibre optic cable
Tranfer Rate100 Baud

MCUManual MCU
