OTA / CTIA Positioning Systems

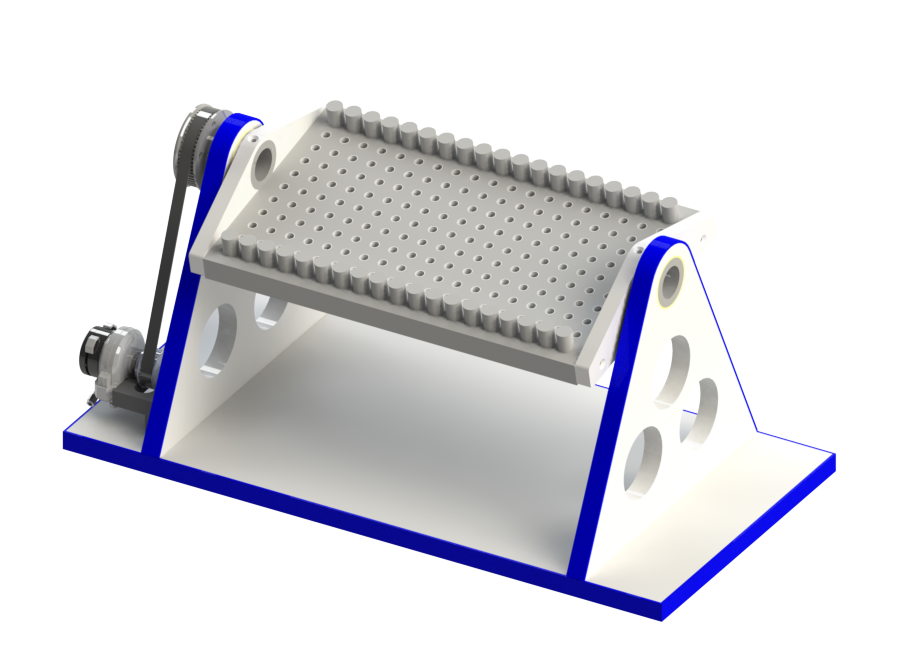

Tilt Device for radiation measurements on EUTs at horizontal turning axis. Different types of devices can be mounted onto the plate. Clamping bolts are integrated on the tilting plate which allows the fixing and adjustment of cables.

Height of rotation axis above base plate	325 mm
Max. Load capability	2.5 kg
Material	Rohacell

KE2.5-R

For radiation measurements on EUTs, especially mobile phones, with horizontal turning axis.

Height of rotation axis above chamber floor	1.5 m
Max. Load capability	2 kg
Material of bracket	Rohacell

TD1.5-2kg

For radiation measurements on EUT, especially mobile phones mounted on a phantom head or laptops, with horizontal turning axis.

Height of rotation axis above chamber floor	1.5 m
Max. Load capability	10 kg
Material of Bracket	Rohacell

TD1.5-10kg

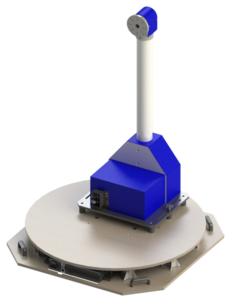

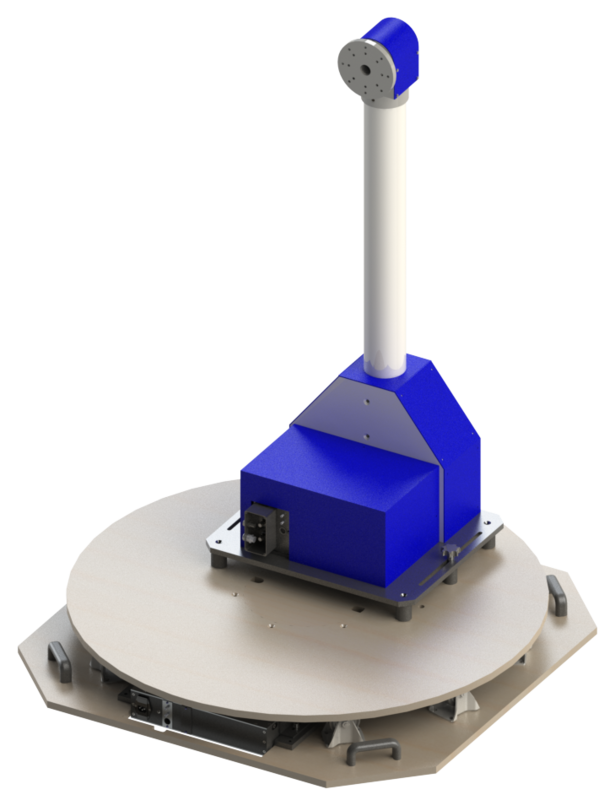

Over-The-Air Positioner with vertical and horizontal rotation for 3D measurement on handheld wireless devices, mainly mobile phones.
Smooth and independent rotation of test objects in both azimuth and elevation axes.
Different sizes and specifications available

Height of polarization axis	1.5 m
Load capacity	max. 10 kg

OTAP-10kg

Electrical Antenna Positioner for high accurate antenna measurement capabilities in both near- field and far-field data acquisition.
Different sizes and specifications available



Antenna height	1.0 m - 2.0 m
Rotating angle polarization	0° - 135°
Linear movement in both axes (y and z)	+/- 500 mm
Load capability	up to 50 kg
Positioning accuracy	up to 0.05°

EAP1.5-15kg

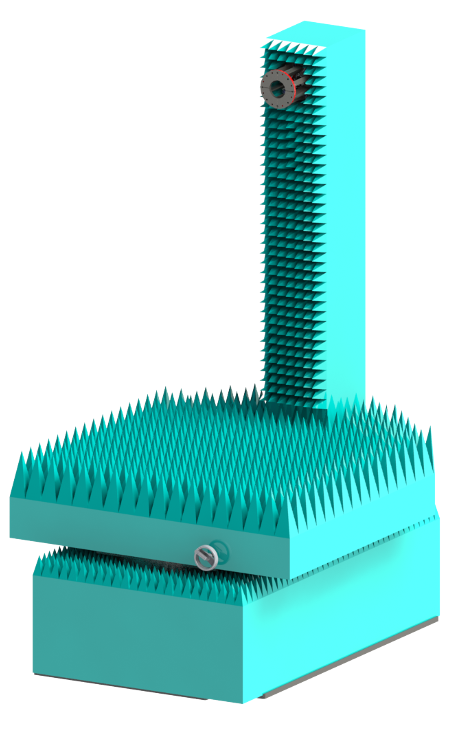

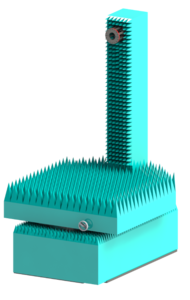

3-Axes azimuth, polarisation and linear positioner
Spherical Great-Circle Cut system for high accurate antenna measurement capabilities for both, near-field and far-field data acquisition, which has 5G NR FR1 / FR2 OTA testing capabilities.
Ideal for Antenna-Under-Test (AUT) like satellite dishes or massive MIMO base station-antennas
Different sizes and specifications available



Frequency coverage	up to 90 GHz
Positioning accuracy	up to 0.05°
Load capability	up to 100 kg

APL-100kg

4-Axis azimuth, polarisation, tilt and linear positioner
Spherical Great-Circle Cut system for high accurate antenna measurement capabilities for both, near-field and far-field data acquisition, which has 5G NR FR1 / FR2 OTA testing capabilities.
Ideal for Antenna-Under-Test (AUT) like satellite dishes or massive MIMO base station-antennas
Different sizes and specifications available



Frequency coverage	up to 90 GHz
Positioning accuracy	up to 0.05°
Load capability	up to 100 kg

APTL-50kg

Combination of a 4-Axes DUT and an antenna positioner.
Spherical Great-Circle Cut system for high accurate antenna measurement capabilities for both, near-field and far-field data acquisition, which has 5G NR FR1 / FR2 OTA testing capabilities.
Ideal for Antenna-Under-Test (AUT) like satellite dishes or massive MIMO base station-antennas
Different sizes and specifications available

Frequency coverage	up to 90 GHz
Positioning accuracy	up to 0.05°
Load capability	up to 100 kg

APTL-50kg_EAP-5kg_LP

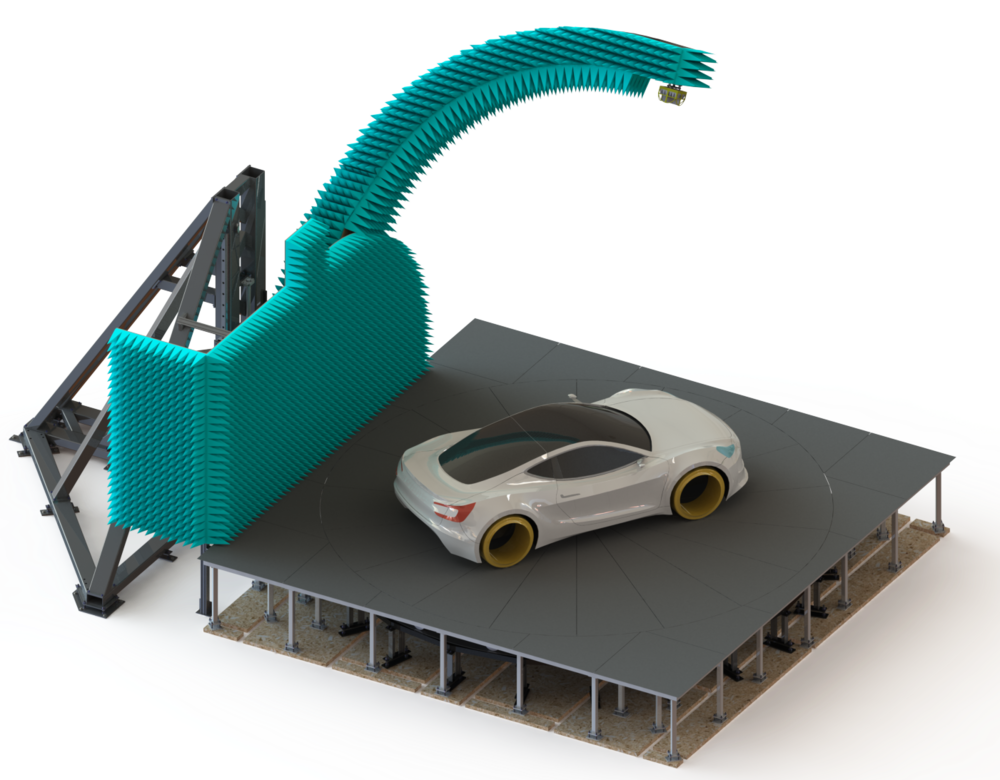

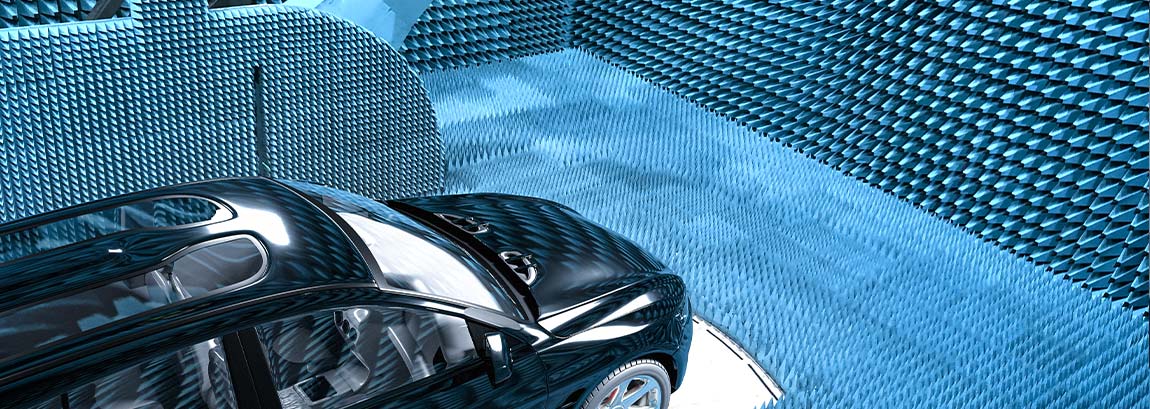

High-Precision Spherical Gantry and Turntable
Spherical Great-Circle Cut system for high accurate antenna measurement capabilities for both, near-field and far-field data acquisition, which has 5G NR FR1 / FR2 OTA testing capabilities.
Ideal for Antenna-Under-Test e.g. installed in vehicles
Different sizes and specifications available

Positioning accuracy	up to 0.01°
Load capability gantry	up to 20 kg
Load capability turntable	up to 100 tons

SG4.5-10kg-0.01_TT6.0-5t-0.01
