Customized / special solutions

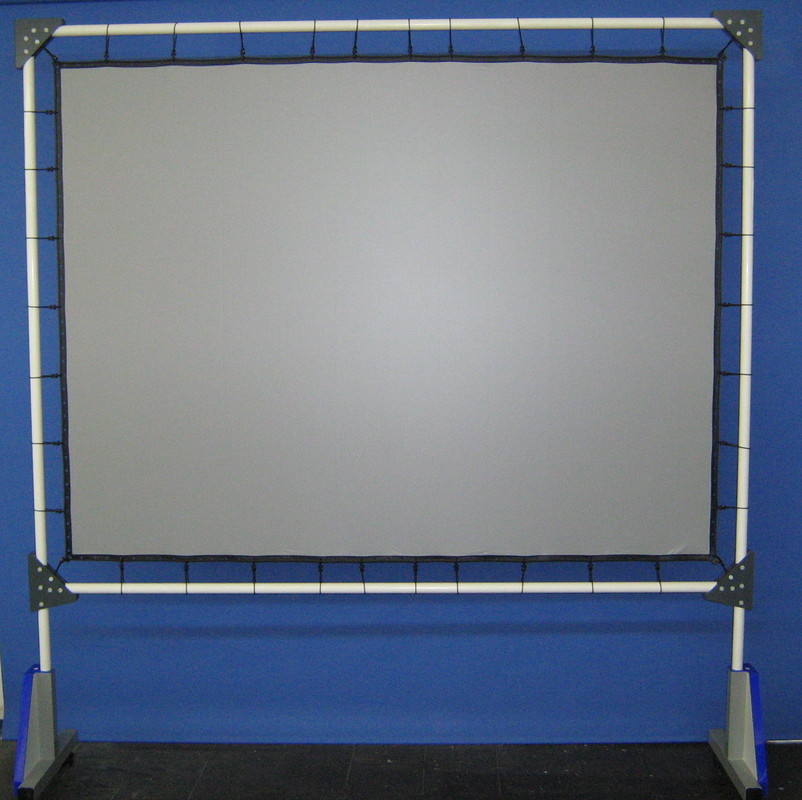

Beamer Screen PL 100

Projection of the test results inside the EMC chamber. No metal parts are used.


Made ofnon-conductive material with a low dielectric constant

Beamer Screen PL100

Manual Antenna Stand MAS 3162-01

For Antenna EMCO 3162-01


Load capability30 kg
Manual height adjustment from 1.0 to 1.5 m
PolarisationManual
Tilt angle manual adjustable between 0 to 30 degree

MAS3162

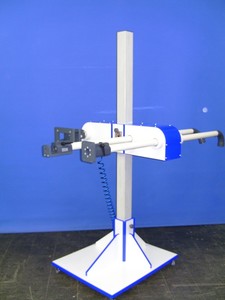

Pneumatic Antenna Stand PAS 2.0-3-N


Manual height adjustment from 0.7 to 2.0 m
PolarisationPneumatic of 3 antennas at the same time
Load capability10 kg

PAS2.0-3-N_e

Cable Winch CW 13-2t

Lifting and Lowering of loads inside anechoic chambers


Load capability2000 kg
All metal parts oft he cable winch outside the chamber
Liftingby three non-conductive plastic ropes

CW13-2t_e
