Turntables
TT 0.8 PF
Free-standing turntable for anechoic Chambers.
Other diameters and load capabilities available on request
| The carrier plate made of | integral skin-foam sheets |
| Diameter | 0.8 m |
| Load capability | 100 kg |
TT0.3PFTT0.8PF
TT xxx WF
Free-standing turntable for anechoic Chambers.
Other diameters and load capabilities available on request.
| carrier plate made of | waterproof, laminated and lacquered wood |
| Diameter | 1.2 to 2.0 m |
| Load capability | 300 kg or 500 kg |
TT1.2WFTT1.5WFTT2.0WF
TT xxx WI
Installation in intermediate floor of fully anechoic Chambers.
Other diameters and load capabilities available on request.
| carrier plate made of | waterproof, laminated and lacquered wood |
| division plate made of | steel can be covered with ferrite tiles |
| Diameter | 1.2 to 2.0 m |
| Load capability | 500 kg |
TT1.2WITT1.5WITT2.0WI

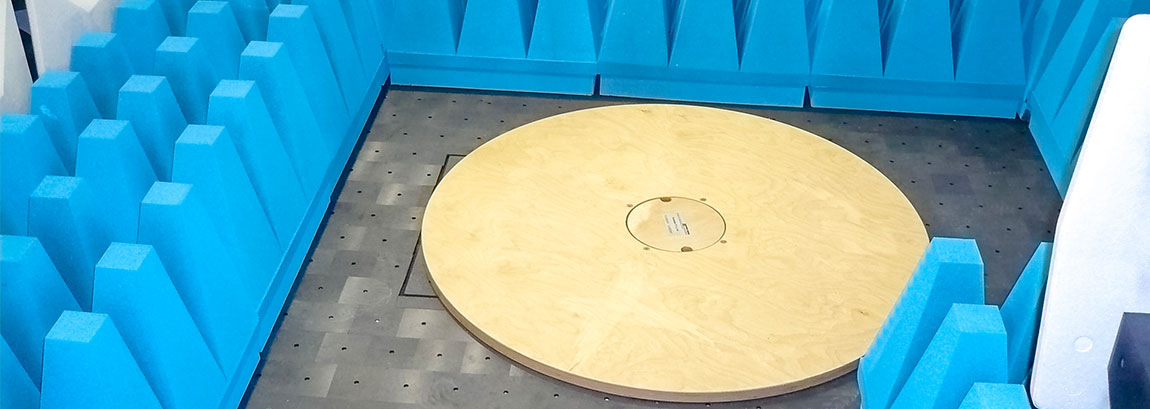

TT xxx SI
Flush mounted installations in semi anechoic electromagnetic absorption chambers or in open area test sites.
Other diameters and load capabilities available on request.
| carrier plate is made of | stainless steel |
| Diameter | 1.2 to 2.0 m |
| Load capability | 500 kg or 1000 kg |
TT1.2SITT1.5SITT2.0SI

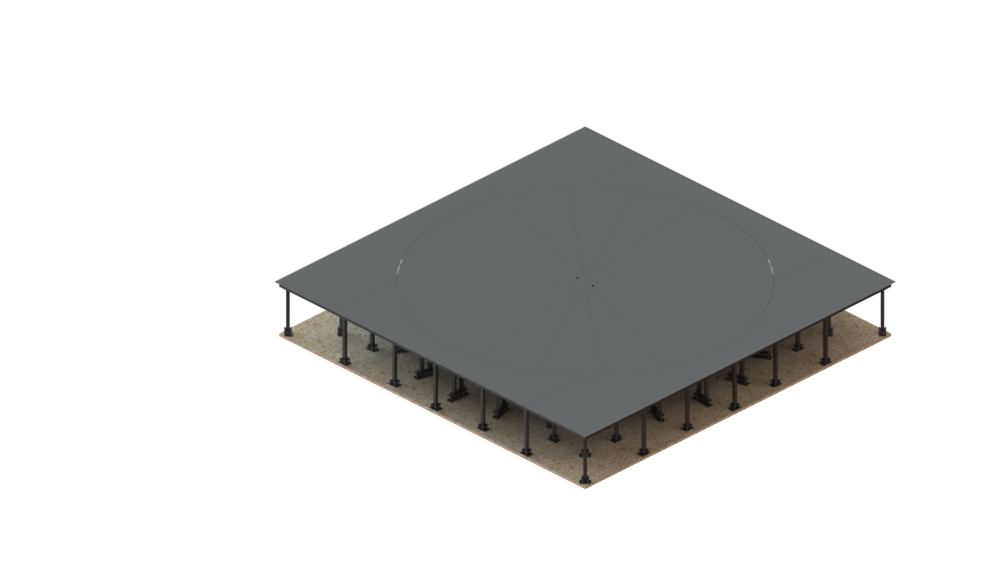

Heavy Duty Turntables
Flush mounted installations in semi anechoic electromagnetic absorption chambers or in open area test sites
| carrier plate is made of | stainless steel |
| Diameter | 2.0 up to 16.0 m |
| Load capability | 2.000 - 100.000 kg |
TT3.0-3tTT4.0-4tTT5.0-5tTT6.0-10tTT8.0-10t
Turntable Options
Integrated energy chain
Integrated slip rings (rotary joints) for continuous rotation
Integrated exhaust extraction system
Integrated cooling fan system
Vehicle charging possibility

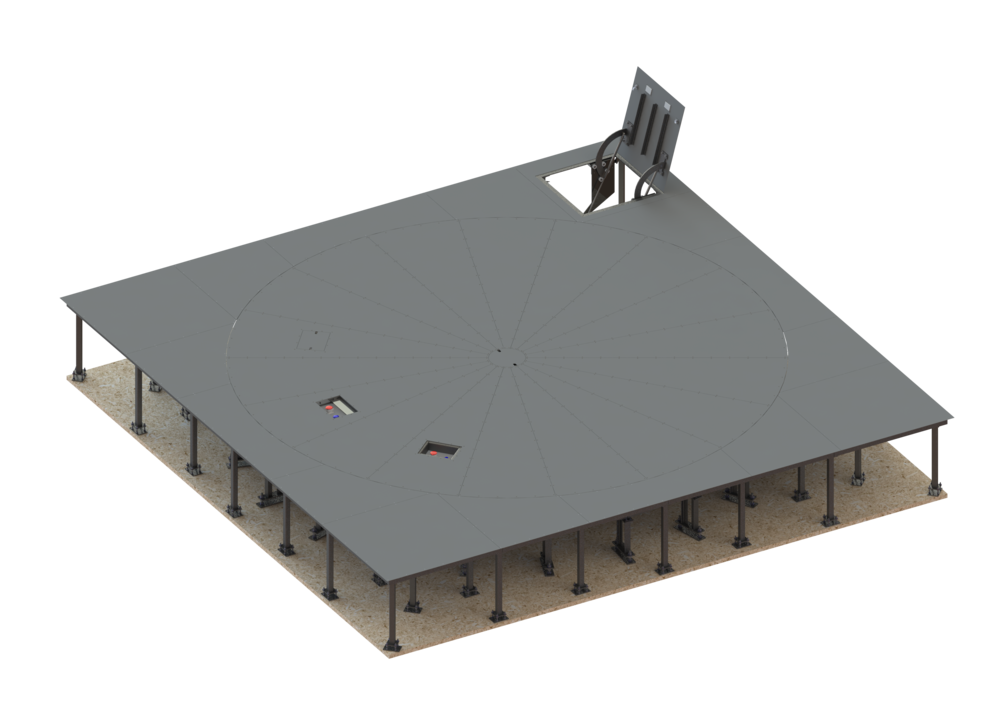

Maintenance hatch
Higher positioning accuracy
Open Area designs
Integrated Dynamometer
| Additional Accessories | Available on request |
maturo turntable options
